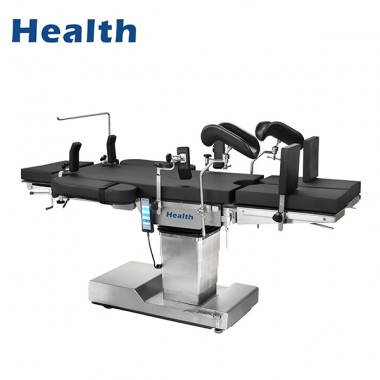

TDY-G-1 Radiolucent Stainless Steel Electric-Hydraulic OR Table for Neurosurgery

  • FOB Price:Get Latest Price >
  • Min.Order:1 Piece(s)
  • Production Capacity:500 Units/ Month
  • Payment Terms:L/C , T/T , D/P , PayPal , Small-amount payment , Money Gram , EXW , FCA , D/A
  • Favorite
Shanghai Wanyu Medical Equipment CO., LTD

Business Type:Manufacturer

Country/Region:China

Ddu Verified

HOT Rank

8/10

Product Information

  • Model:TDY-G-1
  • Certification:CE
  • Net Weight: G/N.W:290/245KG
  • Dimension:1400*770*960mm
  • Packaging Details:Wooden Case
  • Brand Name:Health
  • Trademark:Health
  • Place of Origin:China
  • Warranty:1 year
  • Certificates:ISO 13485 / ISO 9001

Description

Descriptions

TDY-G-1 electro-hydraulic integrated operating table, with ultra-low position, especially suitable for brain surgery. It is also suitable for abdominal surgery, obstetrics, gynecology, ENT, urology, anorectal and many other types of surgery.

All cover is made of 304 stainless steel, easy to clean and disinfect.

High light transmission fiber material is suitable for X-ray use.

The widened mattress design allows patients to lie on the operating table more comfortably.

TDY-G-1 electro-hydraulic operating table adopts advanced hydraulic control system, reliable electromagnetic valves and oil pumps from Taiwan, ensures quiet and stable performance.



Features


Ultra-low Position

The lowest height of this electric-hydraulic OR table can be adjusted to 520mm, very suitable for brain surgery and eye surgery. The detachable head plate can meet the use of the operating table with the cutting head frame.


Double joint head plate

The double-joint head plate of this Electric-hydraulic OR Table can freely adjust the height of the headboard, allowing the patient to have a comfortable head angle when performing operations in different positions


 Built-in Kidney Bridge

Built-in Kidney bridge is made of high-strength PMMA material, quickly achieves various positions, and greatly saves operation time



Built-in Rechargeable Battery

It is equipped with a high-performance rechargeable battery, which can meet the needs of 50 operations. At the same time, it has an AC power supply to provide electrical energy to ensure maximum safety.



Mechanical Brakes

Mechanical pedal brakes are faster, convenient, safe, and reliable




Parameters

Model

Item

TDY-G-1 Electric-Hydraulic OR Table

Length and Width

2080mm * 550mm

Elevation( Up and Down)

820mm / 520mm

Head Plate (Up and Down)

 45°/ 90°

Back Plate (Up and Down)

 80°/ 20°

Leg Plate (Up /Down/ Outward)

15°/ 90°/ 90°

Trendelenburg/Reverse Trendelenburg

20°/ 20°

Lateral Tilt (Left and Right)

15°/ 15°

Kidney Bridge Elevation

110mm

Electro-motor system

Chaoger from Taiwan

Voltage

220V/110V

Frequency

50Hz / 60Hz

Power Compacity

1.0 KW

Battery

Yes

Mattress

Memory Mattress

Main Material

304 Stainless Steel

Maximum Load Capacity

200 KG

Warranty

1 Year


Accessories

No.

Name

Quantities

1

Anesthesia Screen

1 piece

2

Body Support

1 pair

3

Arm Support

1 pair

4

Shoulder Support

1 pair

5

Leg Support

1 pair

6

Foot Support

1 pair

7

Kidney Bridge Handle

1 piece

8

Long Fixing Clamp

1 pair

9

Fixing Clamp

8 pieces

10

Hand Remote

1 piece

11

Power Line

1 piece

12

Pedal

1 Pair
