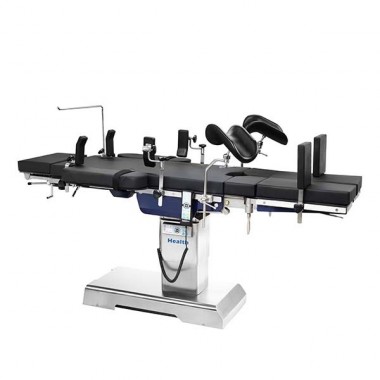

TDY-Y-2 Hospital Surgical Equipment Electro-Hydraulic Operating Table

  • FOB Price:Get Latest Price >
  • Min.Order:1 Piece(s)
  • Production Capacity:500 Units/ Month
  • Payment Terms:L/C , T/T , D/P , PayPal , Small-amount payment , Money Gram , EXW , FCA , D/A
  • Favorite
Shanghai Wanyu Medical Equipment CO., LTD

Business Type:Manufacturer

Country/Region:China

Ddu Verified

HOT Rank

6/10

Product Information

  • Model:TDY-Y-2
  • Certification:CE
  • Net Weight:G/N.W:358/300KG
  • Dimension:1300*770*1040mm
  • Packaging Details:Wooden Case
  • Brand Name:Health
  • Trademark:Health
  • Place of Origin:China
  • Warranty:1 year
  • Certificates:ISO 13485 / ISO 9001

Description

Descriptions


This electro-hydraulic operating table is divided into 5 parts: head section, back section, buttocks section, two separable leg sections.

High light transmission fiber material plus 340mm horizontal sliding ensures no blind spot during X-ray scanning.

This electro-hydraulic operating table is equipped with dual control system to ensure trouble-free operation.

It can be equipped with a multifunctional head frame and orthopedic traction frame.

One button reset function, can restore the original horizontal position. One-button flexion and reverse flexion ,electric leg board function, saves a lot of time.

It is suitable for various surgery, such as abdominal surgery, obstetrics, gynecology, ENT, urology, anorectal and orthopedics, etc.


Features

Longer and Wider Table Surface

The length of the electro-hydraulic operating table surface can reach 2180mm, and the width can reach 550mm, which is suitable for the needs of some special groups and can also make the patient more comfortable.

Double Control System

The electro-hydraulic operating table is equipped with a main control/auxiliary controller dual system to ensure trouble-free operation


Flex &Re-flex & One button Reset

One-button reset function, can restore the original horizontal position, one-key flexion and reverse flexion

Optional Electric Adjusted Leg Plate

The plug-in modular design of the leg plate can adjust the leg plate electrically, which greatly saves the time of adjusting the position.


Built-in Rechargeable Battery

TDY-Y-2 electric-hydraulic operating table is equipped with a high-performance rechargeable battery, which can meet the needs of 50 operations. At the same time, it has an AC power supply to provide electrical energy to ensure maximum safety.


Parameters



Model

Item

TDY-Y-2 Electro-Hydraulic Operating Table

Length and Width

2160mm*550mm

Elevation( Up and Down)

1100mm/ 690mm

Head Plate (Up and Down)

 18° 45°

Back Plate (Up and Down)

 85°/ 4

Leg Plate (Up /Down/ Outward)

15°/ 90°/ 90°

Trendelenburg/Reverse Trendelenburg

28°/ 28°

Lateral Tilt (Left and Right)

18°/ 18°

Kidney Bridge Elevation

100mm

Horizontal Sliding

340mm

Zero position

One button, standard

Flex/ Reflex

Combination Operation

X-ray Board

Optional

Control Panel

Standard

Emergency stop button

Standard

Electro-motor system

Chaoger from Taiwan

Voltage

220V/110V

Frequency

50Hz / 60Hz

Power Compacity

1.0 KW

Battery

Yes

Mattress

Memory Mattress

Main Material

304 Stainless Steel

Maximum Load Capacity

200 KG

Warranty

1 Year





Accessories



No.

Name

Quantities

1

Anesthesia Screen

1 piece

2

Body Support

1 pair

3

Arm Support

1 pair

4

Shoulder Support

1 pair

5

Leg Support

1 pair

6

Kidney Bridge Handle

1 piece

7

Mattress

1 Set

8

Fixing Clamp

8 pieces

9

Long Fixing Clamp

1 pair

10

Remote Control

1 piece

11

Power Line

1 piece

12

Hydraulic Oil

1 oil can
