Shanghai Wanyu Medical Equipment CO., LTD

Descriptions

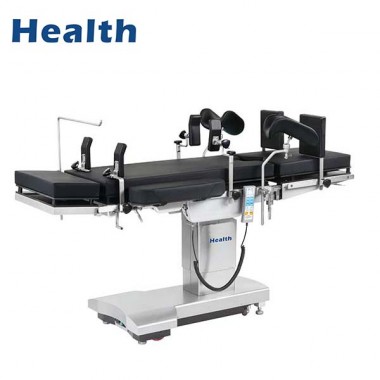

TDY-Y-1electric hydraulic operating table adopts electric imported hydraulic transmission structure, which replaces the traditional electric push rod transmission technology.

The position adjustment is more precise, the movement speed is more uniform and stable, and the performance is reliable and durable.

The Y-shaped base ensures the stability and enough leg space.

 Translation function and see-through bed board, fitted with C-arm, can perform whole body X-ray scanning.

The dual control system, in addition to the hand-held remote control, is equipped with a column emergency control system. The one-key reset function provides the doctor's work efficiency.

This electro-hydraulic integrated operating table is suitable for various surgery, such as abdominal surgery, obstetrics, gynecology, ENT, urology, anorectal and orthopedics, etc

Features

Double Control System

TDY-Y-1 Electric-Hydraulic operating table has double control methods, one is wired controller, with one-key automatic level reset function. And the other is column emergency control system. Two sets of independent operating systems with the same function ensure that the emergency control system can still operate reliably when the wired controller fails, ensuring the safe use of the operating table.

Available for X-ray Scan

The table top of the electric-hydraulic OR table can pass X-rays, and a guide rail is installed on the underside of the table to transport X-ray film boxes

Compatible with C-arm

The electric horizontal movement stroke is 340mm, which provides accurate and convenient positioning space for the C-arm, and can perform whole-body X-ray without moving the patient.

Rechargeable Batteries

TDY-Y-1 Electric-Hydraulic surgical operating table is equipped with high-performance rechargeable batteries, which can meet the needs of ≥50 operations, ensuring it works without an external power supply. The rechargeable battery requires no maintenance and can be used for a long time. At the same time, AC power can be used to provide electrical energy to ensure maximum safety.

One-button Reset  Function

 The new one-button reset function simplify the complicate operations

Parameters

Standard Accessories
