TF Hydraulic and Manual Surgical Gynecology Operation Table

  • FOB Price:Get Latest Price >
  • Min.Order:1 Piece(s)
  • Production Capacity:500 Units/ Month
  • Payment Terms:L/C , T/T , D/P , PayPal , Small-amount payment , Money Gram , EXW , FCA , D/A
  • Favorite
Shanghai Wanyu Medical Equipment CO., LTD

Business Type:Manufacturer

Country/Region:China

Ddu Verified

HOT Rank

6/10

Product Information

  • Model:TF-01
  • Certification:CE
  • Net Weight:G/N.W:260/210KG
  • Dimension:1360*860*880mm
  • Packaging Details:Wooden Case
  • Brand Name:Health
  • Trademark:Health
  • Place of Origin:China
  • Warranty:1 year
  • Certificates:ISO 13485 / ISO 9001

Description

Descriptions

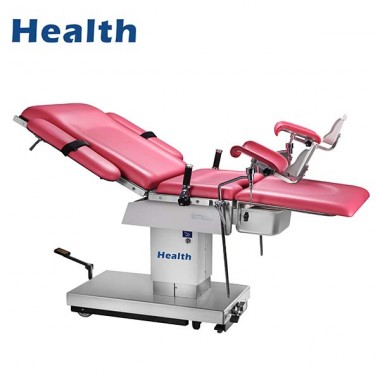

TF Hydraulic gynecology operation table, the body, column and base are all made of stainless steel, with high mechanical strength, corrosion resistance, and is conducive to cleaning and disinfection.

This hydraulic gynecology operation table comes standard with shoulder rest, shoulder strap, handle, leg rest and pedals, dirt basin with strainer, and optional gynecological examination light.

The height of the hydraulic gynecology operation table can be adjusted by pedals, and the tilt of the bed can be adjusted by shaking the handle.

When the brake is stepped on, the fixed base at the bottom of the bed is lowered, which increases the contact area with the ground and ensures the stability of the bed.

It is widely used for gynecology, obstetrics, urology, and anorectal surgery.


Features

Stainless Steel Material

The main body, side rails, lifting column and base of the hydraulic gynecology operating table are made of high-quality 304 stainless steel, with high mechanical strength, corrosion resistance and easy cleaning.

Wide Table Surface

The width of the hydraulic gynecology operating table surface can reach 600mm, which is very friendly to people of a specific body type and improves comfort.

Versatile Accessories

In addition to the standard shoulder rest, shoulder straps, handles, leg rests, leg pedals, waste basin, gynecological examination light is optional available too.


Unique Fixed Foot

Unique operating table fixed foot increases the contact area with the ground and ensures the stability of the hydraulic gynecology.


Parameters



Model

Item

TF Hydraulic Gynecology Operation Table



Length and Width

1800mm * 600mm

Elevation( Up and Down)

900mm / 680mm

Trendelenburg/Reverse Trendelenburg

/ 20°

Back Plate (Up and Down)

 70°/ 11°

Voltage

220V/110V

Frequency

50Hz / 60Hz

Mattress

Seamless Mattress

Main Material

304 Stainless Steel

Maximum Load Capacity

145 KG

Warranty

1 Year



Standard Accessories

No.

Name

Quantities

1

Arm Support

1 pair

2

Handle

1 pair

3

Leg Plate

1 piece

4

Mattress

1 set

5

Waste Basin

1 piece

6

Fixing Clamp

1 Pair

7

Knee Crutch

1 Pair

8

Pedal

1 Pair
