Descriptions

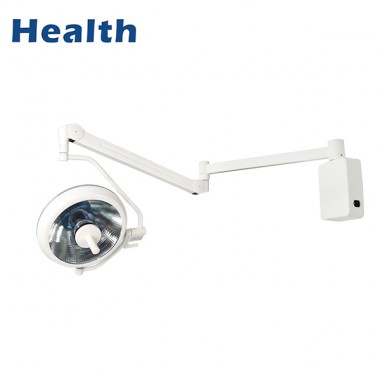

D500 Halogen surgical lamp is available in three ways, ceiling mounted, mobile and wall mounted.

DB500 refers to wall mounted halogen surgical lamp.

This halogen surgical lamp contains 2400 mirrors. It can providing up to 13,000 illuminance, and high CRI over 96 and over 4000K color temperature. Manual adjustable focus, 12-30cm, which can meet the needs of spinal surgery with small incision to large-scale burn surgery.

Apply to

Surgical centers

·Trauma centers

·Emergency rooms

·Clinics

·Veterinarian surgical suites

Features

Space Saving Design

Some operating rooms have low floor height or small area, which cannot meet the space requirement for ceiling operating room. You can choose this halogen wall mounted surgical lamp.

Quality Mirrors

The prism of the reflector is very clear, non-coated, aluminum alloy is integrally formed, the lens is not easy to fall off.

The multi-mirror reflection system minimizes the loss of light intensity and produces an illumination depth of more than 1400mm, which can obtain continuous and stable illumination from the initial incision to the deepest surgical cavity.

OSRAM Bulbs

OSRAM bulb, the service life is 1000 hours. When replacing the bulb, there is no need to open the halogen surgical lamp holder, just unscrew the handle.

 Effective Heat Manage System

Alloy-aluminum housing allows effective heat dissipation, which eliminates the heat at the surgeon head and the wound area.

Medical Heat Insulation Glass

South Korea imported medical heat insulation glass, so that the temperature rise is not higher than 10 degrees, and will not cause the risk of water evaporation in the injured area.

 Control Panel

Ten-level brightness selection, brightness memory function

The main light failure indicator, reminds to replace the bulb in time after the operation

When the main lamp fails, the auxiliary lamp will be automatically lit within 0.3 seconds, and the light intensity and spot will not be affected.

Parameters
