Description
LED730 OT lamp is available in three ways, ceiling mounted, mobile and wall mounted.

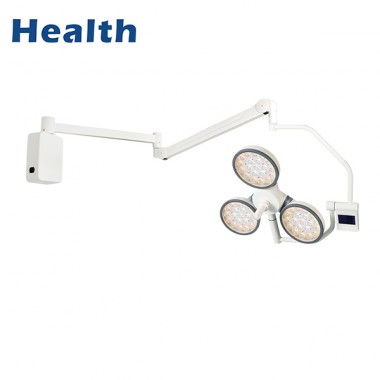

LEDB730 refers to wall mounted OT lamp
For operating room with purifying box, the petal type OT lamp can avoid obstructing air flows and reduces considerably the turbulence areas in the laminar air flow. Three petals, sixty osram bulbs, provide the max illuminance of 140,000lux and max color temperature of 5000K and max CRI of 95. All the parameters is adjustable in ten levels on LCD touch screen control panel. The handle is made of new materials, resistant to high temperature and high pressure. Provide two spring arms , cost-effective, high-end luxury.
Apply to
Private and public hospitals, Laboratories, clinics, etc.
Features
Compatible with Laminar Flow Purification
The petal OT lamp can avoid obstructing air flows and reduces considerably the turbulence areas in the laminar air flow.
The OT lamp holder is fully enclosed design. Detachable handle is resistant to high temperature and high pressure, which strictly meets the daily disinfection requirements.
User-friendly LCD Touchscreen Control Panel
The color temperature, lighting intensity and color rendering index of the light can be changed synchronously through the LCD control panel.
Cold Light
A new type of LED bulbs have no emission of infrared rays, which eliminates the heat under the OT lamp and prevent the temperature increase of the surgeon head and the wound area.
Designed for Low Ceiling Room
Some operating rooms have low floor height or small area, which cannot meet the space requirement for ceiling operating room. You can choose this wall type OT lamp.
Different Spring Arm configurations
There are two options for spring arms, self developed square arms, and imported ondal spring arms, suitable for consumers with different budgets
Two Ways to Connect Power Supply
There are two ways to connect the switching power supply. If the power cord is not reserved on the wall, you can connect the power supply through an external interface.
Parameters
Description | LEDB740 Wall OT Lamp |
Illumination Intensity (lux) | 60,000-140,000 |
Color Temperature (K) | 3500-5000K |
Color Rendering Index(Ra) | 85-95 |
Heat to Light Ratio (mW/m²·lux) | <3.6 |
Illumination Depth (mm) | >1400 |
Diameter of Light Spot (mm) | 120-300 |
LED Quantities(pc) | 60 |
LED Service Life(h) | >50,000 |
