Descriptions
LED500 operating light is available in three ways, ceiling mounted, mobile and wall mounted.

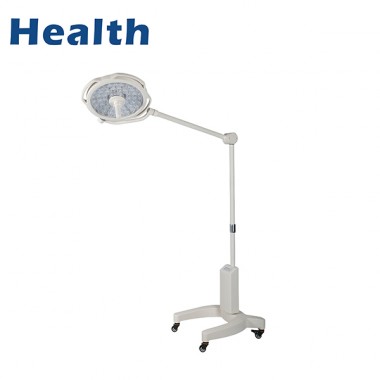

LEDL500 refers to mobile operating Light
New aluminum alloy housing contains 54 Osram bulbs in yellow and white. Each bulb is with independant lens. This mobile operating light provides adjustable illuminance from 40,000 to 120,000lux, color temperature around 4000K and CRI over 90 Ra. The operation panel is LCD Touch Screen. Disinfection handle is resistant to high-temperature and high-pressure. There are two options for spring arms, suitable for people with different budgets.
Apply to
Heart/ Vascular/ Thoracis Surgery
Neurosurgery
Orthopaedics
Traumatology/ Emergency OR
Urology
ENT/ Ophthalmology
Endoscopy Angiography
Outpatient
Features
Effective Heat Dissipation
Alloy-aluminum mobile operating light housing and thick aluminum heat dissipation plate allows effective heat dissipation, which prolongs the service life of LED bulbs.
Easy to Adjust the Position
Besides the edge of the mobile operating light, you can also hold the handle to adjust the exam light to the position you need.
Two Disinfection Handles
We provide two handles for users, one for use and the other for spare. It can be dissembled for disinfection.
Battery Back-up System
Batteries are selected from well-known international brands, with sea and air transportation appraisal reports, safe and reliable. In case of power failure, it can support 4 hours of normal use
Wide Adjustment
The spring arm can be adjusted up and down by 30 degrees, the lamp holder is at least 1.1 meters above the ground and the highest is 2.1 meters.
Wear-Resistant casters
Four castors on the base. Two are easy to move and accurate positioning. Two of them can move freely, the other two can be locked with brake.
Optional LCD Control Panel
For upright mobile operating light, our standard configuration is button-type control panel, which can only adjust the illuminance. But if you want to upgrade to an LCD display which can adjust the color temperature and color rendering index, it is also possible.
Parameters
Description | LEDL500 Mobile Operating Light |
Illumination Intensity (lux) | 40,000-120,000 |
Color Temperature (K) | 4000±500 |
Color Rendering Index(Ra) | >90 |
Heat to Light Ratio (mW/m²·lux) | <3.6 |
Illumination Depth (mm) | >1400 |
Diameter of Light Spot (mm) | 120-300 |
LED Quantities(pc) | 54 |
LED Service Life(h) | >50,000 |
