DD620620 Ceiling Overall Reflection Two Arm Hospital Surgical Light from Factory

  • FOB Price:Get Latest Price >
  • Min.Order:1 Piece(s)
  • Production Capacity:500 Units/ Month
  • Payment Terms:L/C , T/T , D/P , PayPal , Small-amount payment , Money Gram , EXW , FCA , D/A
  • Favorite
Shanghai Wanyu Medical Equipment CO., LTD

Business Type:Manufacturer

Country/Region:China

Ddu Verified

HOT Rank

8/10

Product Information

  • Model:DD620620
  • Certification:CE
  • Net Weight:100kgs
  • Dimension:1080*910*780(mm)
  • Packaging Details:Cartons
  • Brand Name:Health
  • Trademark:Health
  • Place of Origin:China
  • Warranty:1 year
  • Certificates:ISO 13485 / ISO 9001

Description

Descriptions:

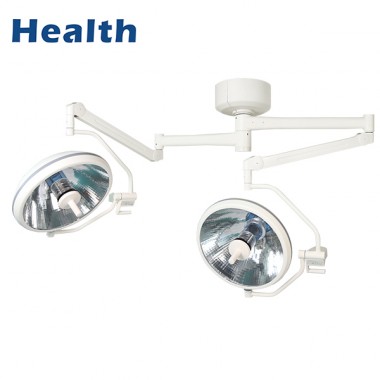

DD620/620  refers to ceiling double dome hospital surgical light.

This hospital surgical light contains 3800 mirrors. It can providing up to 16,000 illuminance, and high CRI over 96 and over 4000K color temperature. Manual adjustable focus, 12-30cm, which can meet the needs of spinal surgery with small incision to large-scale burn surgery.


Apply to

 Surgical centers

·Trauma centers

·Emergency rooms

·Clinics

·Veterinarian surgical suites


Features


 Universal suspension system

The suspension arm is made of new alloy materials, very easy to manipulate and stable when positioned. It can provide the largest adjustment range.


Quality Mirrors

The prism of the reflector is very clear, non-coated, aluminum alloy is integrally formed, the lens is not easy to fall off, and anodized.



Effective Heat Manage System

Alloy-aluminum housing allows effective heat dissipation, which eliminates the heat at the surgeon head and the wound area.


OSRAM Bulbs

The light bulb adopts OSRAM bulb, the service life is 1000 hours.


Powerful Switch Box

Ten-level brightness selection, brightness memory function

Power status, auxiliary lamp detection, main lamp failure prompt lamp

The main light failure indicator, reminds to replace the bulb in time after the operation

When the main lamp fails, the auxiliary lamp will be automatically lit within 0.3 seconds, and the light intensity and spot will not be affected.



 Digital Control Panel

The circuit board uses an advanced digital integrated circuit control panel, which is only stored in the switch box, avoiding the high temperature environment of the hospital surgical light holder.

Easy to install and maintain

 Customized Solutions

We can provide customized design solutions for operation rooms with high or low heights. No additional cost.


Parameters

Description

DD620 Halogen Hospital Surgical Light

Diameter

>= 62cm

Illuminance

90,000- 160,000 lux

Color Temperature (K)

4500±500

Color Rendering Index(Ra)

92-96

Illumination Depth (mm)

>700

Diameter of Light Spot (mm)

120-300

Mirrors(pc)

3800

Service Life(h)

>1,000
