Description

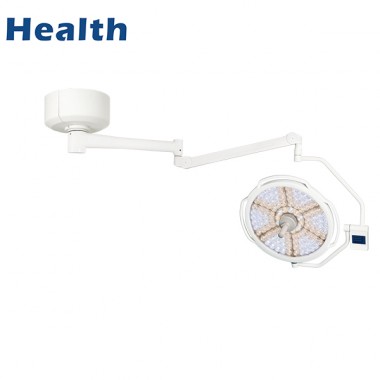

LED700 LED operation light is available in three ways, ceiling mounted, mobile and wall mounted.

LEDL700 refers to single ceiling LED operation light.

The LED operation light holder has a diameter of 700mm and 120 Osram bulbs. The translucent light board makes the light soft and not dazzling. The illuminance reaches 160,000 lux, the color temperature is 3500-5000K, and the CRI is 85-95Ra, all of which can be adjusted through the LCD control panel, with adjustable 10 levels . The suspension arm is made of a new type of aluminum alloy material, which is light and easy to move without the risk of rust. The switching power supply is a well-known brand with a circuit protection system that will not cause no damage to the circuit.

Apply to

Abdominal/ general surgery

gynaecology

heart/ vascular/ thoracic surgery

neurosurgery

orthopaedics

traumatology / emergency OR

urology / TURP

ent/Ophthalmology

endoscopy Angiography

Features

Shadow free performance

The arc lamp holder, multi-point light source design, up to 120 LED bulbs, 360-degree uniform illumination on the observation object, no ghosting. Even if part of it is blocked, the supplement of other multiple uniform beams will not affect the operation.

 Deep Illumination

LED operation light have a light decay of nearly 90% at the bottom of the surgical field, so high illuminance is required to ensure stable lighting. This LED operation light can provide up to 160,000 illuminance and up to 1400mm illumination depth. LEDD700 operation light can meet the needs of major surgery.

 Self-developed Lenses

Different from other manufacturers who buying simple lenses, we invest a lot to develop a unique lenses with better condensing performance. Seperated LED bulbs with its own lens, create its own light field. The overlapping of different light beam makes the operation light spot more uniform and significantly reduces the shadow rate.

LCD Touchscreen Control Panel

The color temperature, lighting intensity and color rendering index of the LED operation light can be changed synchronously through the LCD control panel.

Endo Mode

A special endoscope lighting can be used for minimally invasive surgical procedures.

Reassuring Circuit System

Parallel circuit, each group is independent of each other, if one group is damaged, the others can continue to work, so the impact on the operation is small

Well-known brand switching power supply

There are two types of our switching power supplies, except for the regular ones, stable operation within the range of AC110V-250V, for places where the voltage is extremely unstable, we provide wide-voltage switching power supplies with strong anti-interference ability

Upgrade Choice

Remote Control, wall control, battery back-up system is available. Built-in camera and third arm with monitor is a good upgrade choice.

Parameters
