Description
LED620 LED Medical Light is available in three ways, ceiling mounted, mobile and wall mounted.

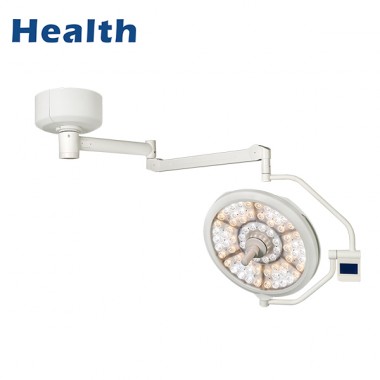

LEDD620 refers to single dome ceiling mounted LED Medical Light.
New product, which has been upgraded on the basis of the original product. Aluminum alloy shell, upgraded internal structure, better heat dissipation effect. 7 lamp modules, a total of 72 bulbs, two colors of yellow and white, high-quality Osram bulbs, color temperature 3500-5000K adjustable, CRI higher than 90, illuminance can reach 150,000 Lux. The operation panel is LCD touch screen, illuminance, color temperature , CRI refers to linkage changes. The suspension arms can be moved flexibly and positioned accurately.
Apply to
Abdominal/ general surgery
gynaecology
heart/ vascular/ thoracic surgery
neurosurgery
orthopaedics
traumatology / emergency OR
urology / TURP
ent/ Ophthalmology
endoscopy Angiography
Features
User-friendly LCD Touchscreen Control Panel
The color temperature, lighting intensity and color rendering index of the LED Medical Light can be changed synchronously through the LCD control panel.
Endo Mode
A special endoscope lighting can be used for minimally invasive surgical procedures.
Self-developed Lenses
Different from other manufacturers who buying simple lenses, we invest a lot to develop a unique lenses with better comdensing performance. Seperated LED bulbs with its own lens, create its own light field. The overlapping of different light beam makes the light spot more uniform and significantly reduces the shadow rate.
High Display LED Bulbs
The high display bulb increases the sharp comparison between the blood and other tissues and organs of the human body, making the doctor's vision clearer.
Free Movement
The 360 universal joint allows the medical light head to rotate freely around its own axis, and provides greater freedom of movement and unrestricted positioning options in low rooms
Customized Solutions
We can provide customized design solutions for operation rooms with high or low heights. No additional cost.
Upgrade Needs
Parameters
Description | LEDD620 LED Medical Light |
Illumination Intensity (lux) | 60,000-150,000 |
Color Temperature (K) | 3500-5000K |
Color Rendering Index(Ra) | 85-97 |
Heat to Light Ratio (mW/m²·lux) | <3.6 |
Illumination Depth (mm) | >1400 |
Diameter of Light Spot (mm) | 120-260 |
LED Quantities(pc) | 72 |
LED Service Life(h) | >50,000 |
