Description
LED500 LED operating light is available in three ways, ceiling mounted, mobile and wall mounted.

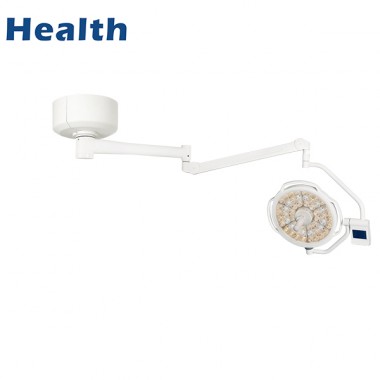

LEDD500 refers to ceiling mounting LED operating light.
New aluminum alloy housing contains 54 Osram bulbs in yellow and white. Each bulb is with independent lens. This LED operating light provides adjustable illuminance from 40,000 to 120,000lux, adjustable color temperature from 3500 to 5000K and CRI over 90 Ra. Both illuminance, color temperature and CRI change simultaneously.The operation panel is LCD Touch Screen. Disinfection handle is resistant to high-temperature and high-pressure. There are three options for spring arms, suitable for people with different budgets.
Apply to
Heart/ Vascular/ Thoracic Surgery
Neurosurgery
Orthopaedics
Traumatology/ Emergency OR
Urology
ENT/ Ophthalmology
Endoscopy Angiography
Outpatient
Features
Cold Light
A new type of LED bulbs have no emission of infrared rays, which eliminates the heat under the lamp and prevent the temperature increase of the surgeon head and the wound area.
Flicker-free Light
LED is pure DC power supply, no flicker during the adjustment process, reducing eye fatigue
Six Modules of OSRAM Bulbs with Two Colors
The LED operating light bulbs are evenly distributed in yellow and white colors. During the adjustment process, the color temperature changes significantly. Cold light and warm light are suitable for different surgical needs.
User-friendly LCD Touchscreen Control Panel
The color temperature, lighting intensity and color rendering index of the LED operating light can be changed synchronously through the LCD control panel.
Endo Mode
A special endoscope lighting can be used for minimally invasive surgical procedures.
Meet the Disinfection Requirements
Sleek and enclosed design, no screws exposed outside,this LED operating light can meet the requirements of the disinfection.
Light-Weight Suspension Arm
Suspension arm with light-weight structure and flexible design is easy for angling
Upgrade Needs
Parameters
Name | LEDD500 LED Operating Light |
Illumination Intensity (lux) | 40,000-120,000 |
Color Temperature (K) | 3500-5000K |
Color Rendering Index(Ra) | 85-95 |
Heat to Light Ratio (mW/m²·lux) | <3.6 |
Illumination Depth (mm) | >1400 |
Diameter of Light Spot (mm) | 120-300 |
LED Quantities(pc) | 54 |
LED Service Life(h) | >50,000 |
